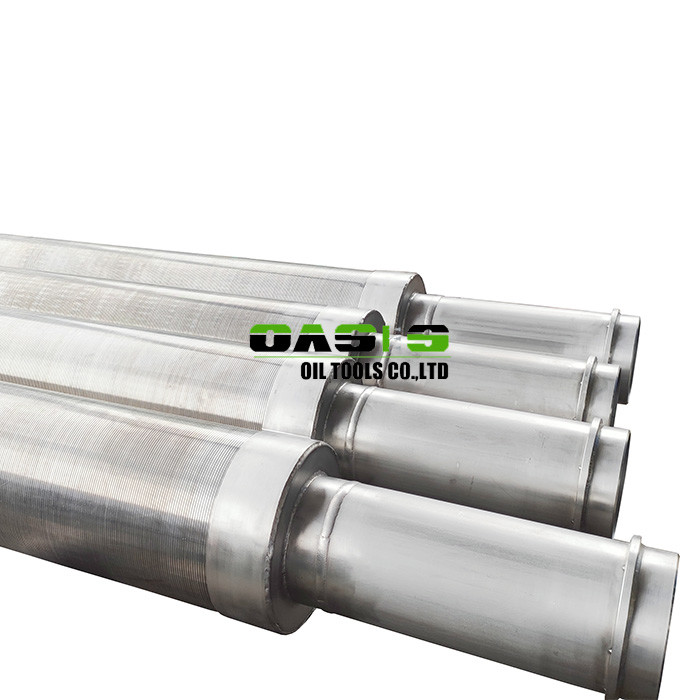

AISI 316L Gravel Pre-Packed Wedge Wire Screens
Product Description
The Gravel Pre-Packed Wedge Wire Screen, also known as the
Stainless Steel Wedge Wire Filter Mesh, is constructed using
V-shaped profile wires and longitudinal support rods. Each
intersection point of these wires is fusion-welded, ensuring a
robust structure and exceptional performance. The V-shaped profile
design ensures smooth water flow, preventing blockages. The
continuous slots provide a larger filtration area, which reduces
the inflow velocity of water. This design minimizes the risk of
sand entering the screen under high pressure, enhancing its sand
filtration efficiency. Additionally, the slot size of the wedge
wire screens can be customized to suit different geological strata.
Specifications
Size (in) | Approx. Screen (in.) | Approx. Screen OD(In.) | Media Annular Thickness (in.) | Inner Screen Open Area(in.2/ft) | Outer Screen Open Area(in.2/ft) | Approx. Screen Weight |
| Screen slot size(0.001in.) | Screen Slot Size(0.001in.) |
| 12 | 20 | 30 | 40 | 50 | 12 | 20 | 30 | 40 | 50 | (lb/ft) |
| 2x4 | 2.2 | 4.5 | 0.85 | 13 | 23 | 31 | 38 | 43 | 22 | 39 | 53 | 64 | 74 | 17 |
| 3x5 | 3.0 | 5.7 | 0.97 | 18 | 31 | 42 | 51 | 59 | 27 | 47 | 64 | 77 | 88 | 23 |
| 4x6 | 4.0 | 6.7 | 0.84 | 22 | 39 | 53 | 64 | 74 | 25 | 45 | 62 | 77 | 89 | 25 |
| 5x7 | 5.0 | 7.7 | 0.84 | 27 | 47 | 64 | 77 | 86 | 28 | 51 | 71 | 87 | 101 | 27 |
| 6x8 | 6.0 | 8.7 | 0.84 | 25 | 45 | 62 | 77 | 89 | 33 | 59 | 81 | 100 | 116 | 35 |
| 8x10 | 8.0 | 10.8 | 0.84 | 33 | 59 | 81 | 100 | 116 | 41 | 74 | 101 | 125 | 145 | 55 |
| 10x12 | 10.0 | 12.8 | 0.84 | 41 | 74 | 101 | 125 | 145 | 42 | 77 | 107 | 133 | 155 | 70 |
| 12x15 | 12.0 | 15.0 | 0.84 | 42 | 77 | 107 | 133 | 155 | 39 | 73 | 102 | 129 | 153 | 85 |
| 14x16 | 13.2 | 16.0 | 0.69 | 46 | 84 | 117 | 146 | 170 | 42 | 78 | 110 | 138 | 163 | 100 |
| 16x18 | 15.2 | 18.0 | 0.69 | 42 | 78 | 110 | 138 | 163 | 47 | 88 | 123 | 155 | 185 | 115 |
| 18x20 | 17.0 | 20.0 | 0.78 | 47 | 88 | 123 | 155 | 183 | 52 | 97 | 137 | 172 | 204 | 128 |
More details
Packing and delivery
Each with bubble bags and then in wooden case.
Each case is clearly marked with:
1. Batch number
2. Date of manufacture
3. Safe heating & application temperature
