    High-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable Operation


    Product Descriptions

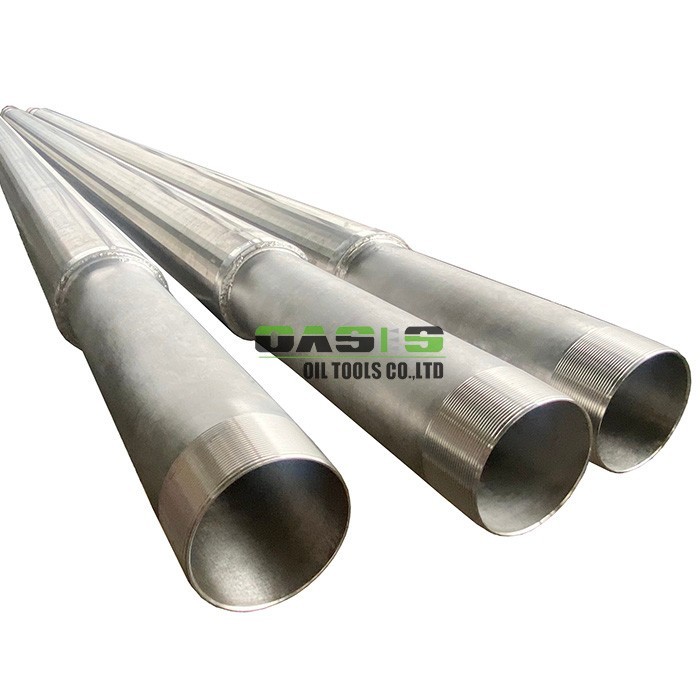

    Prepacked Well Screens

    Prepacked well screens are composed of two screens nested one inside the other. The annular space is filled with filter pack materials at the factory before shipment, which effectively simplifies on-site construction procedures and improves operation efficiency. These screens are specifically designed for high-capacity wells and offer significant advantages over traditional rod-based screens in terms of strength:

    • High Strength Features: With a collapse strength equivalent to that of pipes and a tensile strength twice that of standard rod-based screens, they can withstand the pressures of complex downhole environments, ensuring long-term stable operation and reducing the risk of screen damage.
    • High-Quality Filter Pack: The filled filter pack materials are resistant to biological erosion and have superior hydraulic performance compared to silica sand. This ensures efficient fluid passage while effectively intercepting impurities, enhancing the filtration effect.
    • High Open Area: Thanks to the unique dual-support structure design, it has a higher open area than conventional screens in deep applications, meeting high-flow requirements and increasing well productivity.

    For prepacked well screens, the base pipe can be perforated casing conforming to API standards, bridge slot pipe, or continuous slot well screen. The filter media in the middle layer can be quartz sand, wire mesh, metal fiber, ceramic beads, etc. The screen jacket can use continuous slot screens or bridge slot pipes. They can be flexibly combined according to different working conditions and requirements to meet diverse operation scenarios.


    Specifications


    ID(mm )Normal size(inch )OD(mm)Gravel size (mm)Slot(mm)
    502-3/81100.10-4.50.05-3
    632-7/81230.10-4.50.05-3
    743-1/21380.10-4.50.05-3
    9241510.10-4.50.05-3
    1034-1/2”1640.10-4.50.05-3
    11651770.10-4.50.05-3
    1295-1/2”1890.10-4.50.05-3
    1426-5/8”2180.10-4.50.05-3
    1727”2270.10-4.50.05-3
    1838-5/8”2690.10-4.50.05-3
    2209-5/8”2940.10-4.50.05-3
    24610-3/4”3230.10-4.50.05-3
    27613-3/8”3980.10-4.50.05-3
    37316”4560.10-4.50.05-3

    Inspection

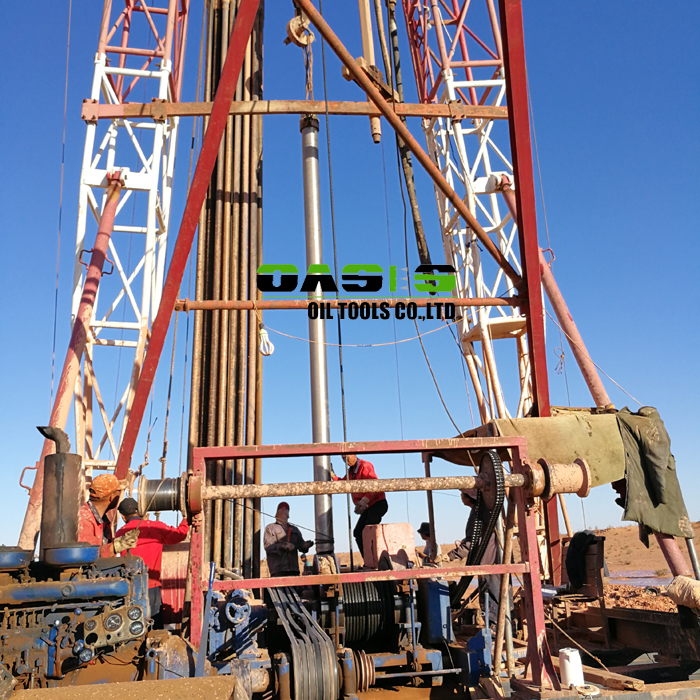

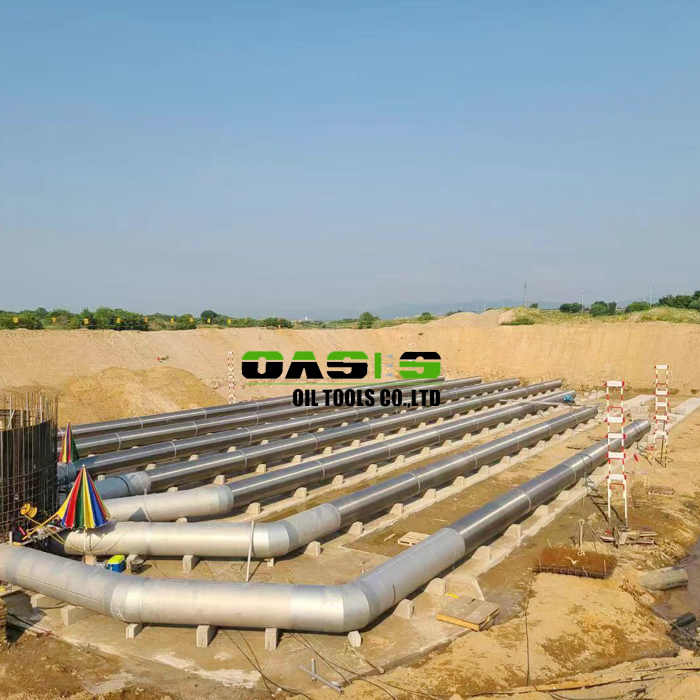

    Project


    High-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable Operation

    Project in Qatar
    High-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable Operation
    Project in Korea
    High-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable Operation
    Project in Russia

    More Details

    High-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable OperationHigh-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable OperationHigh-Strength Gravel Pack Screen for Filtration in Prepacked Well Screens with Stable Operation

    Related Products

    Wedge wire screen


    Flange


    Company Informations

    Water Well Casing Pipe Stainless Steel Seamless API Pipe Manufacturer


    Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with more than 150 staff, among them 6 persons are senior engineer. OASIS is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/ Johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.


    Oasis has the right to export well screens independently. Our water well screens have been exported to Russia, Sudan, Tunisia, Morocco, Saudi Arabia, Slovenia, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, Columbia etc. Countries, and have received good feedback from customer at domestic and abroad.
